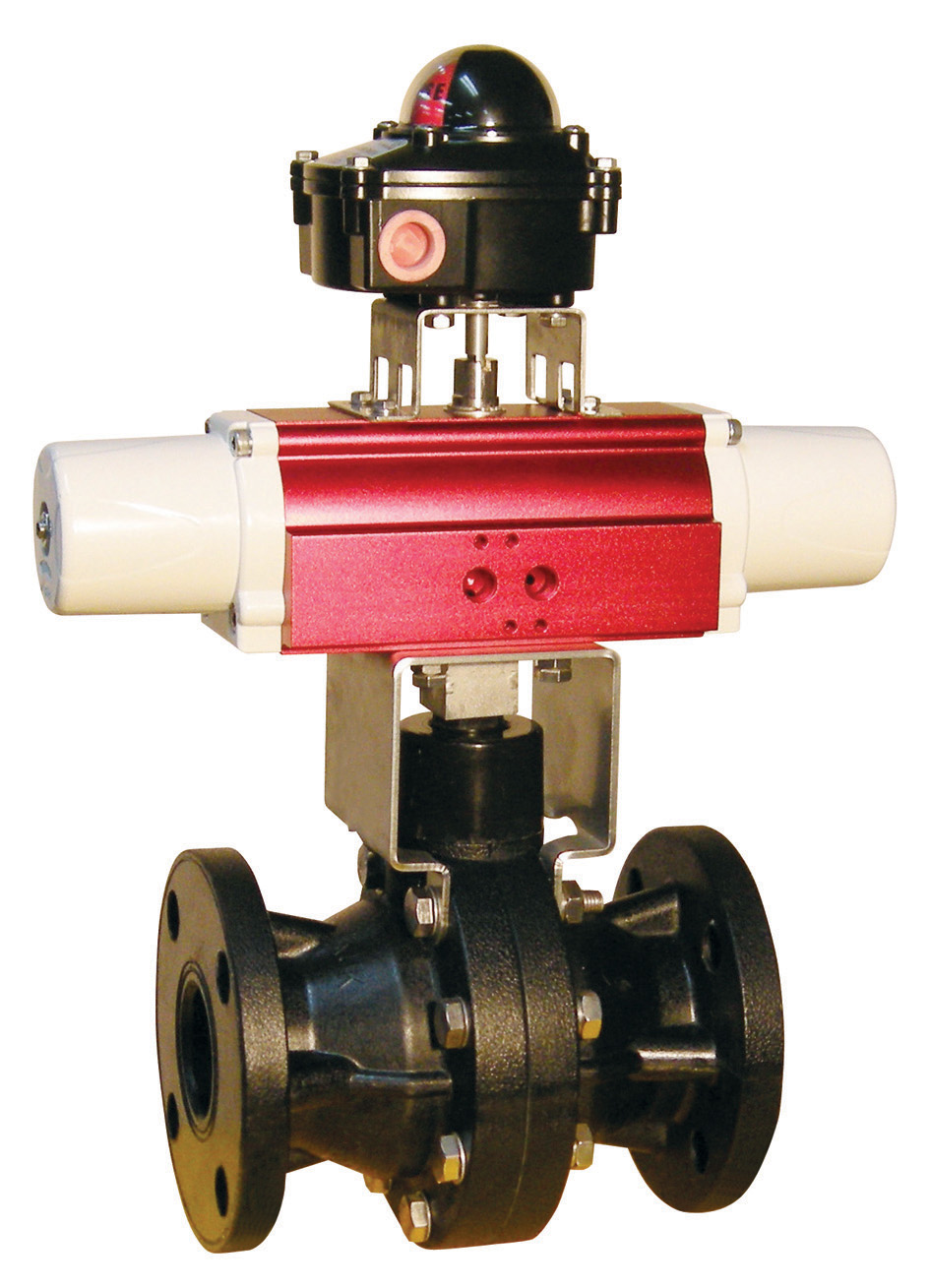

SMC(FRP) BALL VALVE

Model: AK- FRP85C

Brand: Ankuk

Danh mục: CHEMICAL, SPARE PART Từ khóa: Ball valve, chemical

Mô tả
Đánh giá (0)

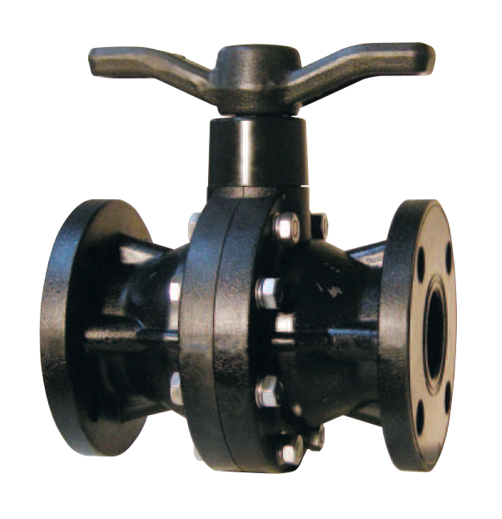

JIS 10K/MANUAL VALVE

UNIT:mm

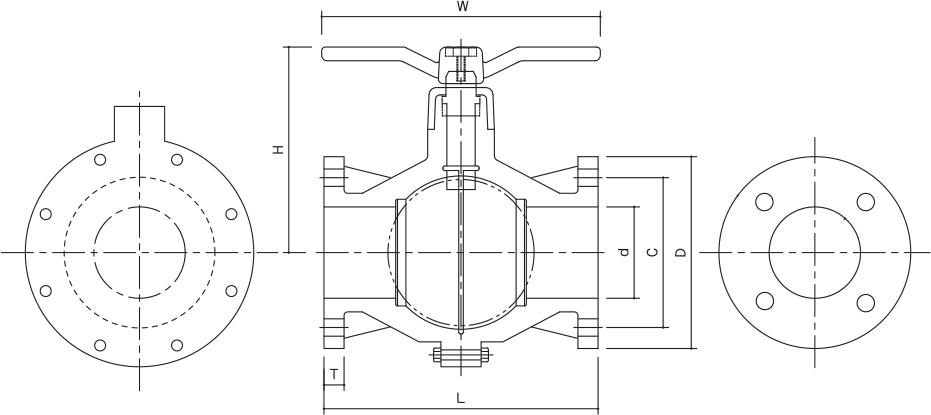

MODEL	SIZE(mm)	L	H	D	C	d	T	N-ØA	W(kg)
AK 15	15	145	126	95	70	15	20	4-Ø15	1.7
AK 20	20	150	126	100	75	20	20	4-Ø15	1.9
AK 25	25	170	126	125	90	25	20	4-Ø19	2.1
AK 32	32	175	170	135	100	32	21	4-Ø19	2.9
AK 40	40	190	170	140	105	40	21	4-Ø19	3.2
AK 50	50	210	170	155	120	50	21	4-Ø19	4.6
AK 65	65	260	170	175	140	65	23	4-Ø19	6.2
AK 80	80	268	190	185	150	80	26	4-Ø19	7.8
AK 100	100	300	225	210	175	100	27	8-Ø19	11
AK 125	125	360	260	250	210	125	27	8-Ø23	19.5
AK 150	150	360	280	280	240	150	27	8-Ø23	25
AK 200	200	420	367	330	290	200	34	12-Ø23	53
AK 250	250	515	422	400	355	250	37	12-Ø25	86
AK 300	300	655	610	445	400	300	45	16-Ø25	145

ANSI 150 / MANUAL VALVE

UNIT:mm

MODEL	SIZE(inch)	L	H	D	C	d	T	N-ØA	W(kg)
AK 15	1/2	145	126	89	60.3	15	20	4-Ø16	1.7
AK 20	3/4	150	126	98.5	69.9	20	20	4-Ø16	1.9
AK 25	1	170	126	108	79.4	25	20	4-Ø16	2.1
AK 32	1 1/4	175	170	117.3	88.9	32	21	4-Ø16	2.9
AK 40	1 1/2	190	170	127	98.4	40	21	4-Ø16	3.2
AK 50	2	210	170	152.4	120.6	50	21	4-Ø19	4.6
AK 65	2 1/2	260	170	177.8	139,7	65	23	4-Ø19	6.2
AK 80	3	268	190	190.5	152.4	80	26	4-Ø19	7.8
AK 100	4	300	225	228.6	190.5	100	27	8-Ø19	11
AK 125	5	360	260	254	216	125	27	8-Ø23	19.5
AK 150	6	360	280	279.4	241.3	150	27	8-Ø23	25
AK 200	8	420	367	343	298.4	200	34	8-Ø23	53
AK 250	10	515	422	406.4	361.9	250	37	12-Ø26	86
AK 300	12	655	610	482.6	431.8	300	45	12-Ø26	145

DIN – PN10 / MANUAL, AUTOMATIC VALVE

UNIT:mm

MODEL	SIZE(mm)	L	H	D	C	d	T	N-ØA	W(kg)
AK 15	15	145	126	95	70	15	20	4-Ø14	1.7
AK 20	20	150	126	100	75	20	20	4-Ø14	1.9
AK 25	25	170	126	125	90	25	20	4-Ø14	2.1
AK 32	32	175	170	135	100	32	21	4-Ø18	2.9
AK 40	40	190	170	140	105	40	21	4-Ø18	3.2
AK 50	50	210	170	155	120	50	21	4-Ø18	4.6
AK 65	65	260	170	175	140	65	23	4-Ø18	6.2
AK 80	80	268	190	185	150	80	26	4-Ø18	7.8
AK 100	100	300	225	210	175	100	27	8-Ø18	11
AK 125	125	360	260	250	210	125	27	8-Ø18	19.5
AK 150	150	360	280	280	240	150	27	8-Ø23	25
AK 200	200	420	367	330	290	200	34	8-Ø23	53
AK 250	250	515	422	400	355	250	37	12-Ø23	86
AK 300	300	655	610	445	400	300	45	12-Ø23	145
