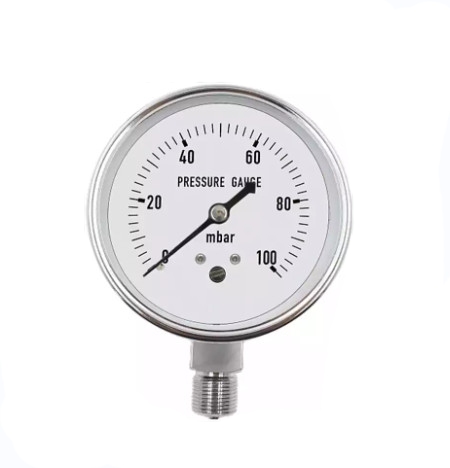

Shelok Pressure Gauge Stainless Steel

Description:
YK-M2 stainless steel pressure gauge consists of a pressure guiding system (including joints, spring tubes, currentimiting screws, etc.), a gear transmission structure, a display device (pointer and dial), and an outer casing (includinga case, a cover, a window, etc.). The outer casing is airtight and can effectively protect the internal parts from the environment and dirt.

Ordering Instructions:
The installation base is one of the supporting accessories of the gauge, and the user can choose it according tothe actual operation condition.When ordering, please mark the surface size, pressure diference value, gauge material, shock-proof or notthread specifcation, thread distance, static pressure, installation method, with or without three or five valvesmanifold, U-tube etc., and please make special description for other requirements.

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Pressure gauge, Spare

Mô tả
Đánh giá (0)

Technical indicators:

1>Accuracy class: 1.6,2.5,1.0(custom)
2>Measuring range:(Mpa) (custom)
0-0.16 0-0.25 0-0.1 0-0.4
0-0.6 0-1.6 0-2.5 0-1
0-40-60-100-16
0-250-400-60
0.1-0-0.1-0.06-0.1-0.15 -0.1-0.3
-0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4
3>Parts material: Ss316,Ss316L,(custom)
4>Case Material :Stainless Steel Ss 304
5>The instrument nominal diameter: Ф60mm Ф100mm Ф150mm Ф200mm( custom)
6>Connector thread size: M20X1.5(G3/8″,Gl/4″,NPTl/2 “or custom)
7>Working conditions:
(1)Ambient temperature:-40-70C
(2) Working pressure: Static load: with a scale value 3/4 alternating load: The scale value short 2/3 pressure: the scale value
8>Type Dry (Liquid Fillable)
9>Mount lower/back
