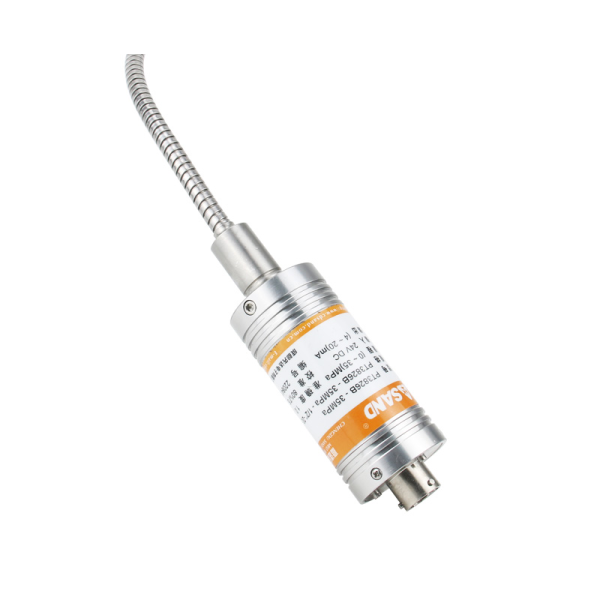

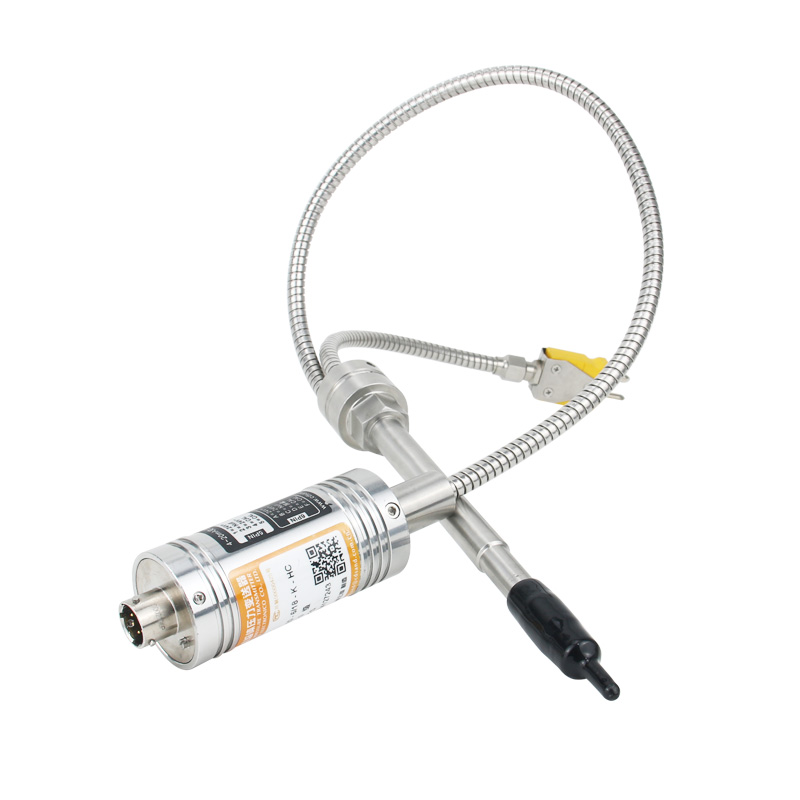

Shelok High Temperature Melt Pressure Transmitter

The high-temperature melt pressure transmitter is packaged in stainless steel, which is easy to install and has good stability and repeatability. Multiple output signals can be freely selected, using 5-core connectors or imported 6-core gold-plated connectors for connection. The product can be interchanged with similar international products. Applied to the measurement and control of melt pressure in equipment such as plastic machinery and chemical fiber equipment.

1>Range: 0~1-300MPa
2>Comprehensive accuracy: 0.25% FS; 0.5% FS
3>Pressure output: 2.0mV/V; 4-20mA; 0-5V; 1-5V; 0-10V
4>Working temperature: -10~500 ℃
5>Power supply voltage: Sensor: 10VDC (6-12VDC)
Transmitters: 24VDC (9-36 V)
6>Insulation resistance: greater than 2000M Ω 100VDC
7>Sealing level: IP65
8>Screw connection: M14X1.5 (universal type); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (universal); Customizable

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Presure sensor, Spare

Mô tả
Đánh giá (0)

Description

The high-temperature melt pressure transmitter adopts the principle of strain gauges and can measure liquid pressure below 500 degrees. The high-temperature melt pressure transmitter is widely used in the plastic extrusion industry for pressure measurement, such as chemical fiber equipment, plastic rubber manufacturing equipment, polyester, petrochemical, and various high-temperature fluid pressure measurement and control. It can be used in conjunction with intelligent digital pressure instruments and control instruments to achieve display and control of pressure and temperature.

Feature

Steel stem,flex tube and diaphragm isolatedconstruction,excellent stability and accuracy.

Application

This PT124series are suitable for the pressure measuring andcontrolling in the high temperature liquid medium of thechemical fiber filature,polyester,the equipment of rubberplastic machine and etc.
