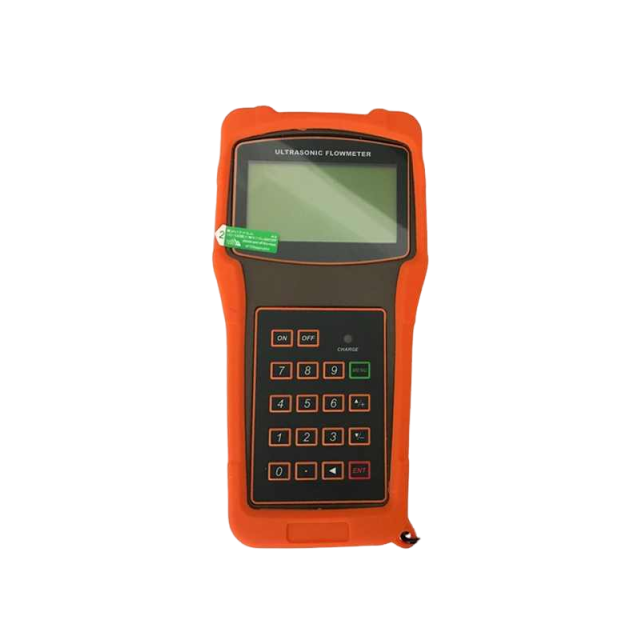

Shelok Handheld Ultrasonic Flow Meter

The YFU2000H flow meter incorporates the latest ICs manufactured from famous semiconductor manufacturers like Philips, Maxim, TI, Winbond, and Xilinx. The hardware features the ease of operation, high accuracy and outstanding reliability, while the software provides a very user friendly interface and much more functions. It employs a patent balanced lower voltage multi-pulse igniting circuit which increases the anti-interference significantly so that the flow meter will work properly even in demanding industrial environments such as those with power frequency transverters working nearby.
1>Pipe Size: 20-6000mm
2>Working temperature: -20°C~+160°C
3>Communication interface: 4~20mA/Pulse/485
4>Supply voltage: Built-in rechargeable Ni-MH battery (for 20 hours operation) orAC 220V
5>Linearity: 0.5%
6>Repeatability: 0.2%
7>Accuracy:Flow meter: ±1.0%FS
8>Application: Water, sea water, industrial sewage, acid and alkali solutions, alcohol, beer,various oils and other single uniform liguids that can conduct ultrasonic waves

Danh mục: INSTRUMENT, SPARE PART Từ khóa: Flow Meter, instrument, Spare

Mô tả
Đánh giá (0)

Key Features & Benefits
Non-Invasive & Easy to Use

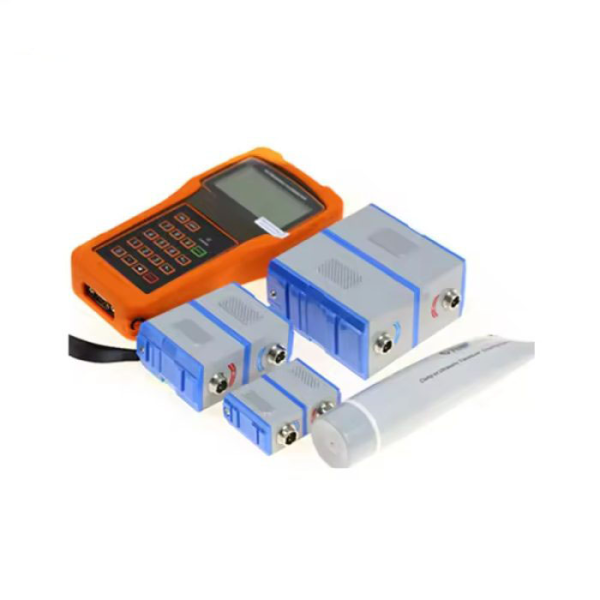

Clamp-on sensors attach externally to pipes (metal, plastic, or composite) with no drilling or downtime.
Lightweight, portable design with a rugged housing for fieldwork (IP67 rated).

Wide Compatibility

Measures conductive and non-conductive liquids: water, oils, chemicals, slurries, and more.
Compatible with pipe diameters from DN15 to DN6000+ (0.5″ to 240″) and wall thickness up to 50 mm.

High Accuracy & Flexibility

Accuracy up to ±1% of reading (transit-time mode) for reliable diagnostics.
Dual-mode operation (transit-time for clean liquids / Doppler for slurries or aerated fluids).

Smart Functionality

Large backlit LCD displays real-time flow rate, totalizer, velocity, and battery status.
Built-in data logger stores up to 100,000 records with timestamp (USB/Bluetooth export).
Long-lasting rechargeable battery (20+ hours) for extended field use.

Typical Applications
🔹 Water & Wastewater: Leak detection, pump efficiency testing, distribution network audits.
🔹 HVAC Systems: Chilled/heating water flow verification in commercial buildings.
🔹 Oil & Gas: Fuel transfer monitoring, pipeline integrity checks.
🔹 Food & Beverage: Sanitary flow validation without process contamination.
🔹 Agriculture: Irrigation system performance analysis.
🔹 Industrial Maintenance: Troubleshooting flow issues in chemical or manufacturing plants.
