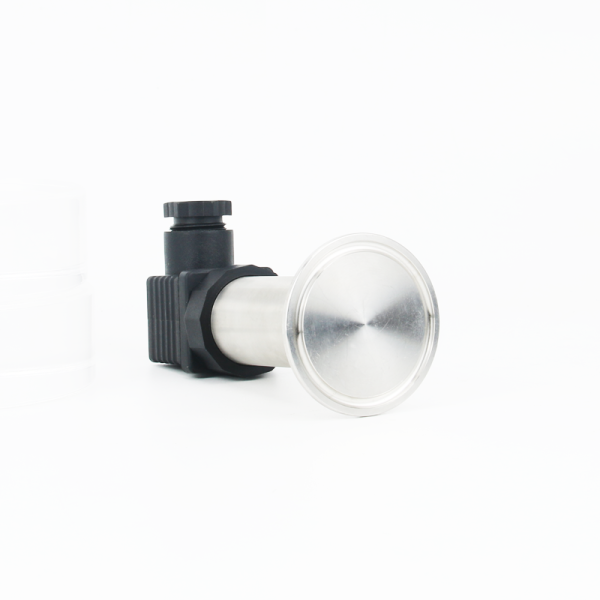

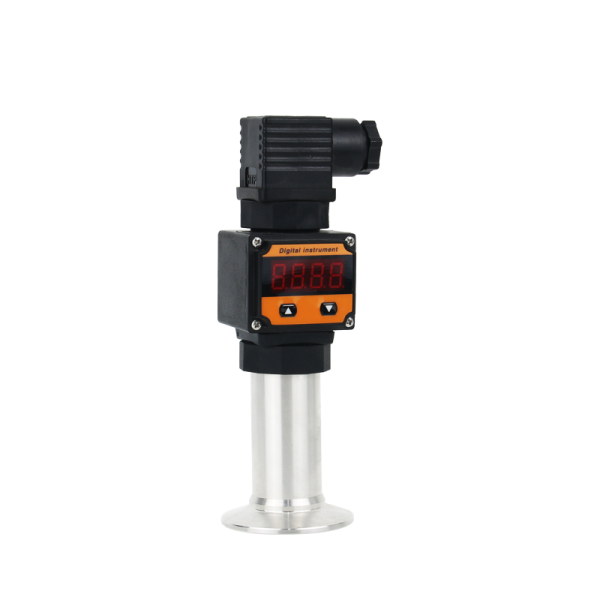

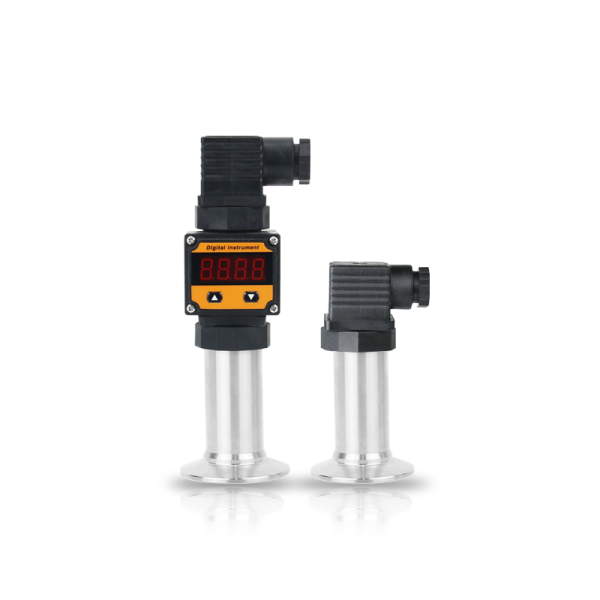

Shelok Flush Sanitary Pressure Transmitter Thin Film Pressure Sensor

YD34 series of flat film pressure transmitters directly sense the pressure signal by welding the diaphragm to the frontend of the process interface, using the diffused silicon chip as the sensitive element, and the special digital circuit, aftersignal amplifcation, linear compensation, anti interference, and ant surge protection lt is a fat membrane pressuremeasurement product that outputs industry standard signals such as signal processing.

1>Pressure range : 0.1MPa~0~10MPa
2>Output: Current 2-wire: 4 ~ 20mAVoltage 3-wire : 0 ~ 5V; 0 ~ 10V; 1 ~ 5V; 1 ~ 10V Option:RS 485 ,hart
3>Power supply: 10~30VDC/ 8~30VDC/15~30VDC/5+0.25VDC
4>Pressure port: 50.5mm clamp
5>Accuracy: +0.1%FS ,+ 0.2%FS ,+ 0.5%FS,+ 1%FS
6>Working temperature: -30~80℃
7>Certificate: CE

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Presure sensor, Spare

Mô tả
Đánh giá (0)

Description

The sanitary pressure transmitter is a pressure and liquid level transmitter with a sanitary flushing diaphragm.They adopts U.S.A imported GE core. All process connections of the flush pressure transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal. A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured.

Applications

●lrrigation Equipment
●Generalindustrial applications
●Food and beverage industry
●Filling and packing machinery
●Dairy and beverage processing
●Pharmaceutical
●Dosing technology

Features

● 316L stainless steel diaphragm welded 316SS body construction shock and erosion
●Custom pressure ranges from 0-1m thru 0-500m
●Flush process connection eliminates plugging
●Advanced digital temperature compensation
●Available with an integral cooling
●extension for high temperature
●applications
