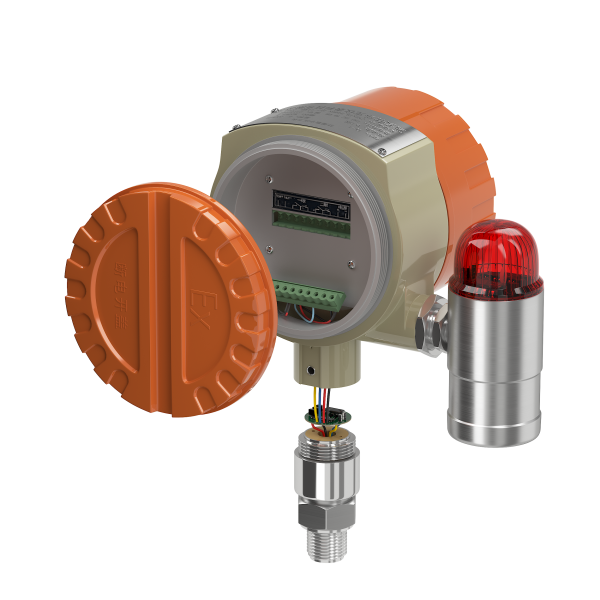

Shelok Explosion Proof Pressure Controller

Inteligent pressure controller is an intelligent digital pressure measurement and control product thatintegrates pressure measurement, display, output, and control. This product is a fully electronic structure,with a front end using a pressure sensor with isolation film filling oil pressure resistance. lt is convertedby high-precision A/D, processed by a microprocessor, displayed on site, and outputs one analog signaland two switching signals.

1>Range: 0-100MPa
2>Accuracy level: 0.5% F.S
3>Overload capacity: 200%
4>Power supply voltage: 24VDC/220VAC
5>Display method: 0.56 “digital tube
6>Display range: -1999~9999
7>Response time:<30ms
8>Environmental temperature: -20 ℃~70 ℃
9>Relative humidity: ≤ 80%
10>Interface material: 304 stainless steel Range: 0-100MPa

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Presure sensor, Spare

Mô tả
Đánh giá (0)

Description

Intelligent pressure controller is an intelligent digital pressure measurement and control product thatintegrates pressure measurement, display, output, and control. This product is a fully electronic structurewith a front end using a pressure sensor with isolation film filling oil pressure resistance. lt is convertedby high-precision A/D, processed by a microprocessor, displayed on site, and outputs one analog signaland two switching signals.
This intelligent digital pressure controller is fexible to use, easy to operate, and safe and reliable. Widelyused in industries such as hydropower, petroleum, chemical, mechanical, hydraulic, etc, to measure,display, and controlthe pressure of fluid media on site.

Feature

●Installation of 100 standard instruments

●4-digit LED display ignoring value error

●Control point on-site setting

●Two control point relay outputs

●4-20mA standard signal output (optional)
