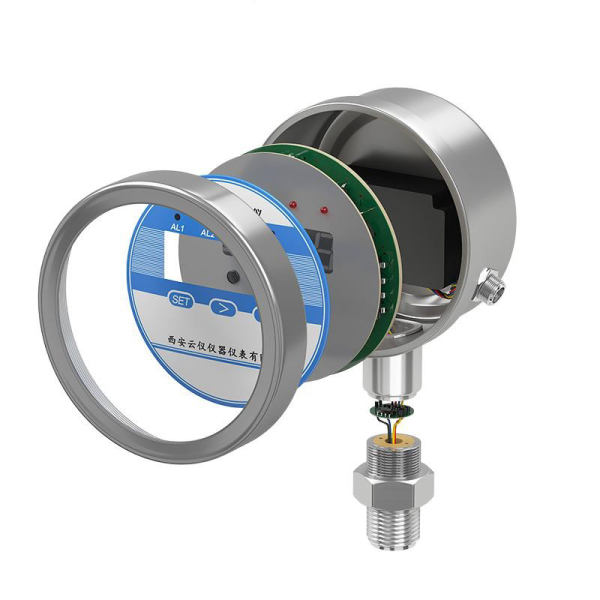

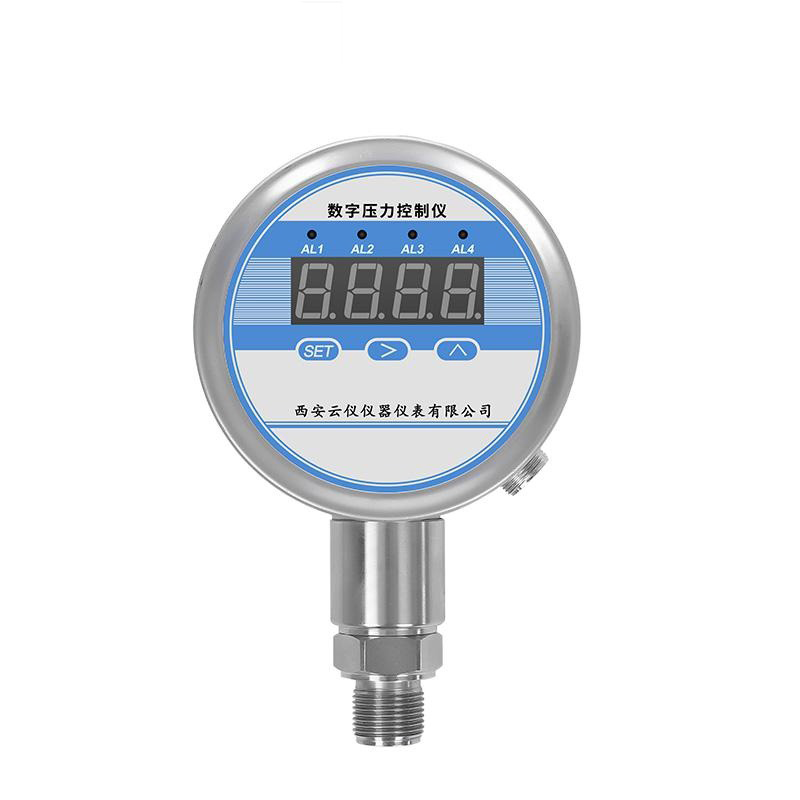

This pressure transmission control instrument adopts pressure sensors imported from the United States, with an intelligent microcontroller as the control core. It is a highly integrated product that integrates pressure measurement, display, analog transmission output, and alarm output.

1>Working power supply: AC85~260V/DC24V
2>Power consumption of the whole machine: less than 3W
3>Sampling rate: 3 times/second
4>Measurement accuracy: 0.1% FS 0.2% FS 0.5% FS
5>Feed output: DC24V (25mA)
6>Display range: -1999~9999
7>Overlimit display: “EEEE”
8>Display digital tube: 0.56 inch red 4-digit
9>Contact capacity: AC220V 3A
10>Usage environment: 0~+70 ℃; ≤ 85% RH
