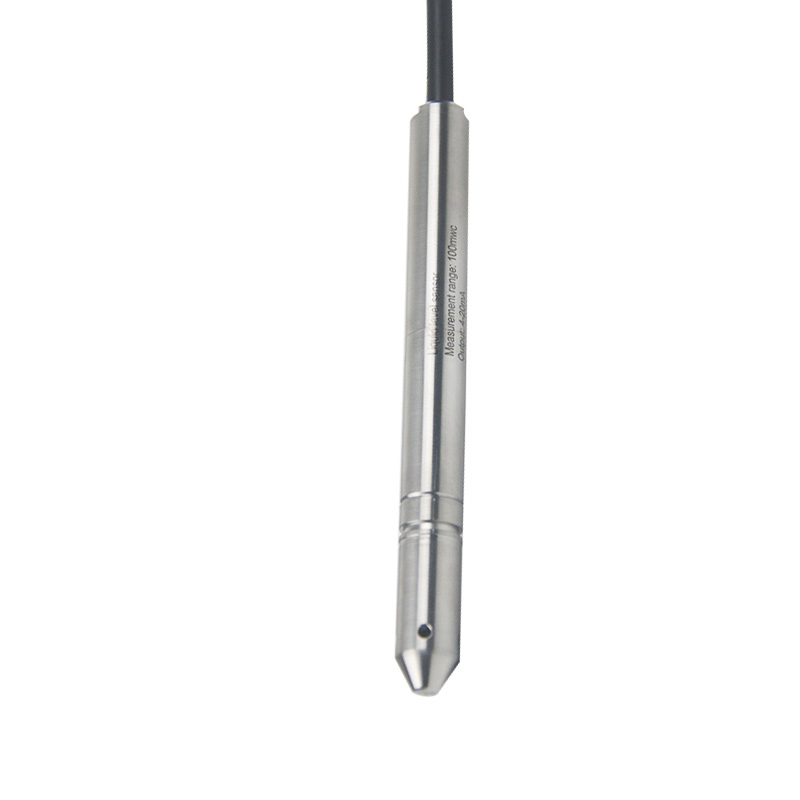

Shelok Deep Well Water Level Meter

Submersible type water level sensor transmitter is mainly used for petrochemical, metallurgy, electric power, pharmaceuticals, water supply and drainage, environmental protection and other systems and industries of the liquid level measurement.

1>Measurement range: 0.2 to 20 m
2>Accuracy: 0.2, 0.5, 1.0
3>Probe Temperature: -40 ~ + 250 ℃
4>Allow vessel pressure: -0.1MPa ~ 2.5MPa
5>Measuring medium: not less than the conductivity of the acid, alkali, water and other non-conductive liquid crystalline 10-3 s / m of
6>Power supply: DC12 ~ 35V (isolated for DC21 ~ 27V)
7>Current work: (output at 20mA) non-isolated two-wire, three-wire: 20mA
8>Both ends of the isolated three-wire: <32mA; isolated four-wire three-terminal: <35mA
9>Output signal: 4 ~ 20mA (0 ~ 10mA, 0 ~ 20mA)
10>Output Protection: 27mA
11>Isolation voltage between measurements, output, power supply: 1000V
12>Span adjustment range and zero migration: ≥ ± 30% FS
13>Transmitter body size: ∅76 × 85

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Level sensor, Spare

Mô tả
Đánh giá (0)

Description:
It can convert all kinds of level, changes in the level of medium parameters into a standard current signal, remote to operate the control room for the secondary instrument or centralized computer device display, alarm or automatic control.

Feature:
Its good structure and installation method, suitable for high temperature, high pressure, highly corrosive, easy to crystallize, anti-clogging, level, level anti-cold junction under special conditions and solid powder, granular materials, etc., continuously measuring level of , widely used in electric power, metallurgy, chemical, food, pharmaceutical and other industries and sewage treatment, boiler drum, coal and other places of the package level, level and physical level measurement.
