Capacitive type liquid level transmitter, which provides more high-speed, reliable and accurate data processing and communication. Provides a variety of output modes, including analog quantities of voltage and current, digital RS485 and so on. Output signal can provide a location, multiple locations, or a location plus a temperature output. Detailed multi-functional output mode provide customers with more choices.
1>Application: Liquid, oil, water
2>Measuring range: 300-3000mm
3>Process connection: M20*1.5Thread,flange
4>Power Supply: 24VDC
5>Output Signal: 4-20mA
6>Compensation temperature: -10~70°C
7>Media temperature: -30~150°C
8>Store temperature: 20~80°C
9>IP grade: IP65
10>Explosion-proof grade: ExiaIIC T6 Ga/ExiaIC T6 Gb
11>Accuracy: 0.5%FS ,0.25%FS( Need customized)
12>Work pressure: 0.6-3Mpa
Description:

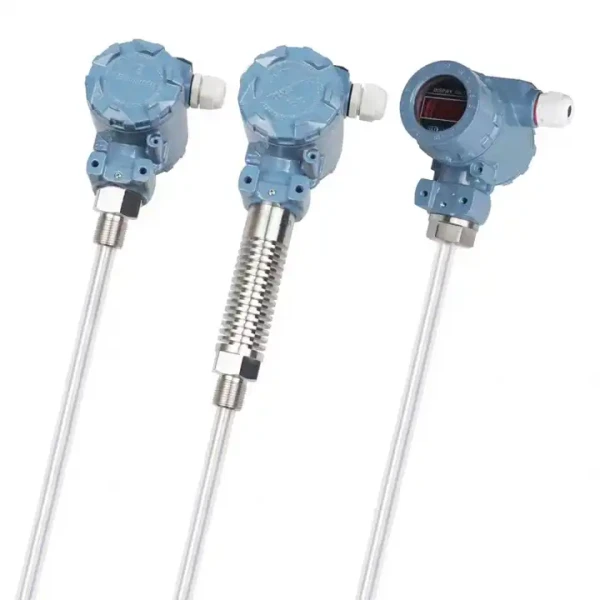

There are two types of structures: threaded insertion and flange insertion. Corrosion-resistant throw-in type liquid level transmitter uses Hastelloy or F4 material with strong corrosion resistance and good stability, or high stability ceramic capacitor transducer. F4 bushing with strong corrosion resistance of the gas conducting cable jacket is sealed with the outer shell.
