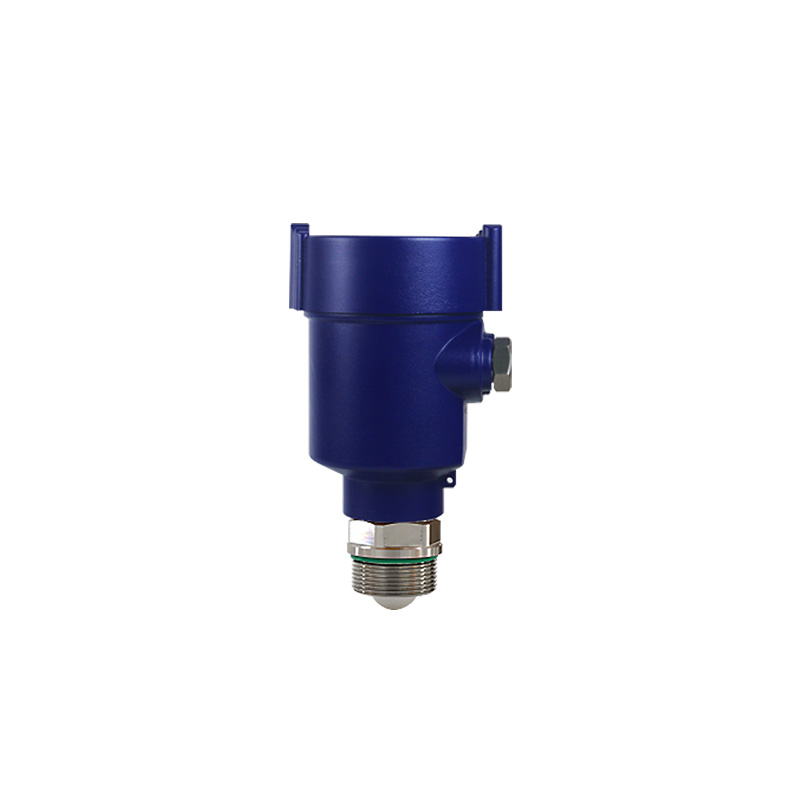

Shelok 80G Radar Liquid Material Level Meter

Shelok 806G FMCW 80G radar (also called millimeter wave radar) level meters, as it uses a millimeter waveband with a higher frequency than Ku band radar, long-distance imaging and multi-spectral imaging in remote target detection and strong smoke and dust environments, it can detect smaller targets than microwave radar and achieve more precise positioning, it has higher resolution and stronger confidentiality.

1>Frequency range: 76~81GHz
2>Application range: slightly corrosive liquid, stirring, water vapor condensation
3>Measuring range: 60 m
4>Signal output: 4~20mA/HART (two-wire/four-wire) RS485/Modbus
5>Process connection: flange, thread
6>Medium temperature: -40~120℃
7>Process pressure：-0.1~0.3MPa
8>Measurement accuracy: ±1mm
9>IP rating: IP67
10>Explosion-proof grade: ExiblIC T6 Gb
11>Shell material: aluminum casting/stainless steel

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Level sensor, Spare

Mô tả
Đánh giá (0)

Description:

The radar level meter transmits a microwave pulse signal with a narrow J and very low energy through an antenna. This pulse signal is transmitted in space at the speed of light and is reflected when it encounters the measured medium. The reflected signal is received by the instrument, and the pulse signal is transmitted and the pulse signal is received. The time interval is proportional to the distance between the reference plane and the surface of the measured medium. The distance between the antenna and the surface of the medium can be measured by measuring the time interval between transmission and reception.

Feature:

The parabolic antenna radar level gauge is a non-contact radar level gauge that uses the pulse principle.
It can be widely used to measure solid material levels, process containers, strong dust, easy crystallization, and condensation.
