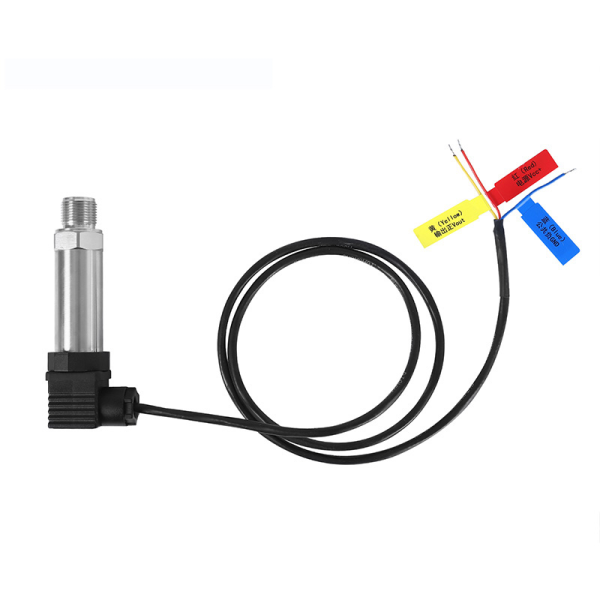

Shelok 4-20mA Vacuum Pressure Transmitter Low Cost

Shelok 4-20mA pressure transmitter are use Switzerland brand Ceramic sensors for manufacturing, which is providehigh burst/over pressure protection, High reliable long time running, Stable performance, Stronganti-interference ability and max 8 million pressure cycles lifetime. Application on the field of air com.pressors,hydraulic pressure, water supply system, Building water supply, variable frequency watersupply, braking systems, engine oil pressure and gas pressure measurement.

1>Pressure range:-1-0*1 bar…600 bar optional
2>Output:4~20mA,0~5V/0~10V/0.5~4.5V
3>Power supply:10-30VDC/ 8-30VDC/15~30VDC/5+0.25 VDC
4>Pressure port:1/8″NPT male; 1/4″NPT male; 1/4″NPT Female;G1/2″ male; G1/4″ male/female, 7/16″20 UNF male
5>Accuracy:0.25%FS: 0.5%FS
6>Working tem perature :-35C~125℃
7>Certificate:CE, RoHS

Danh mục: INSTRUMENT, SPARE PART Từ khóa: instrument, Presure sensor, Spare

Mô tả
Đánh giá (0)

Description

Shelok 4-20mA pressure transmitter is precisionengineered and manufactured to fit many industrialand OEM pressure measurement applications. Therugged design provides resistance to vibration ,shock, wide tem perature variations, RFl and otherextreme environmental conditions that are typical ofindustrial and OEM applications.Options includemany available process connection,electrical con nec-tions as well as all in dustry standard pressure rangesand output signals to meet many application require-ments.

Applications

●Pneumatic System Controls

●Mechanical engin eering

●Hydraulics and pneumatic

●Energy and Water Treatment

●HAVC System

●Process control and automation

Features

●Low cost compact type

●High Strength Stainless Steel Construction

●Au tomatic temperature comp ensation 0-50 C

●Low Static and Thermal Errors
