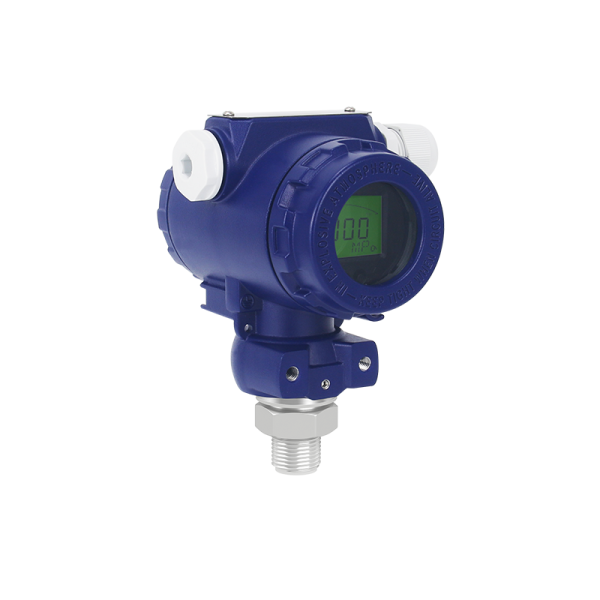

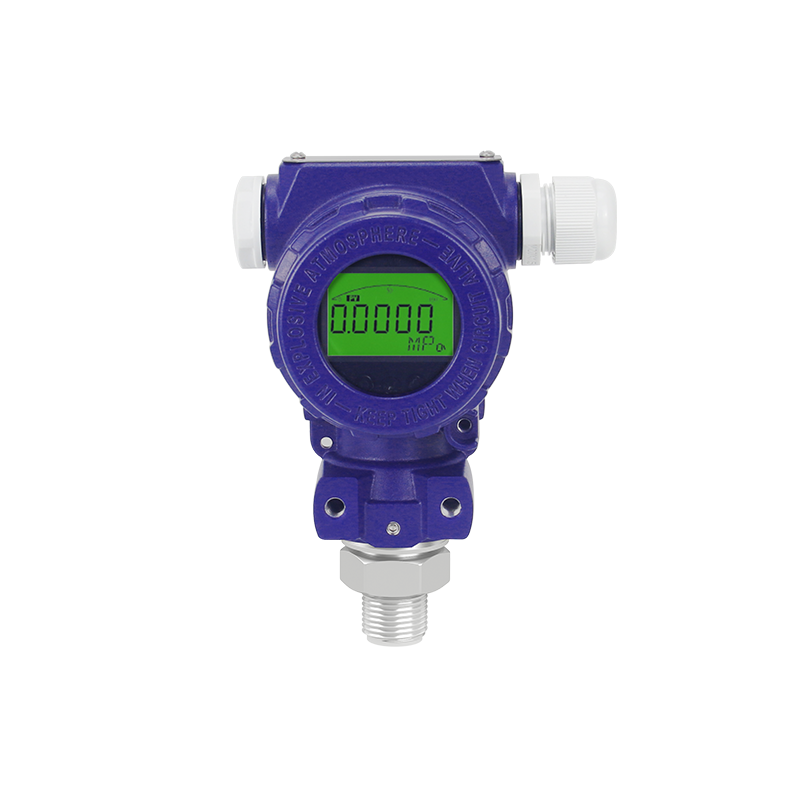

YD-2088-1 type pressure transmitter uses piezoresistive silicon oil-filled sensor as the signal measuringelement. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standardoutput signal. All the products through components and semi-finished products test, finished products burn-inscreening, are with stable and reliable performance. Have strong anti-interference performance, can workingin harsh environment conditions for long term .

1>Pressure range: -1~0~0.1bar…1000 bar optional
2>Sensor: Diffused silicon
3>Output: 4-20mA,0~5V,1-5V,0-10V,RS485 Hart
4>Power supply: 12-30VDC
5>Pressure port: 1/2″NPT mal/ 1/4″male/ G1/2″male/ M20x1.5 male or by customized
6>Accuracy : +0.5%Fs, =+0.25%FS (customerized)
7>Working temperature: -40°C~85C or -40~125C
8>Certificate: CE Exiall CT6 Ga, ATEX, ROHS
