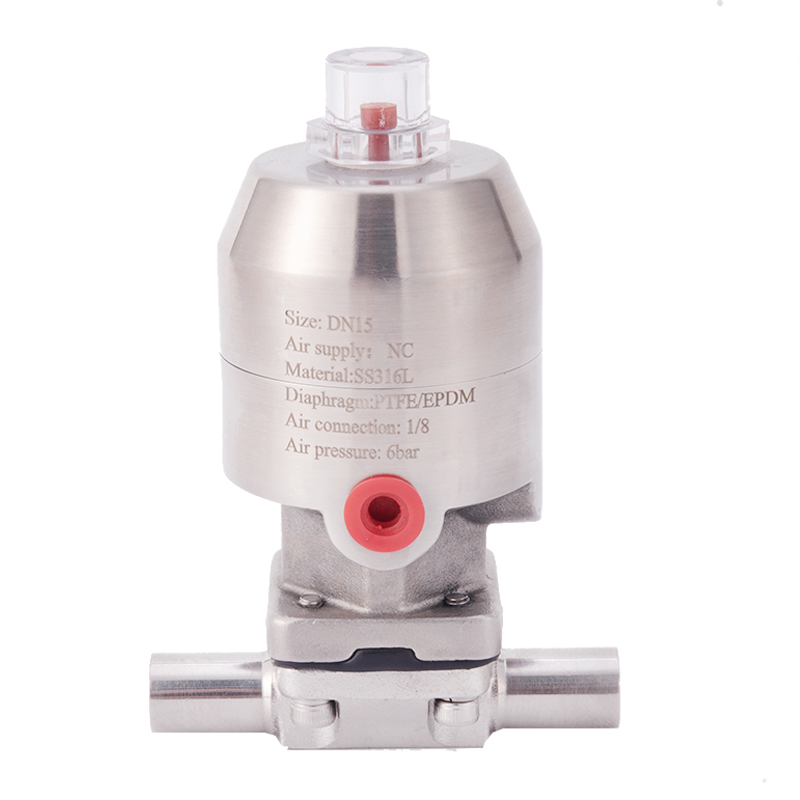

…………………. Sanitary Diaphragm Valve: Product Overview ………………………………….
| Size | 1/2″-5″, DN15-DN125 or Customized Size |
| Body Material | SS 316L / 304 or Others |
| Seal Material | PTFE+EPDM (Standrad ) / EPDM or Others |
| Max Pressure | 1.0 MPA ( 10 Bar ) |
| Temperature | -20 ° C ~ 150 ° C (EPDM+PTFE ) |
| Operation | Pneumatic / Manual (Optional) |
| Available Standard | ASME BPE / 3A /DIN /ISO /IDF,SMS etc. |
| Certification | 3A-54-02/1580, PED97/23 EC, FDA177.2600 |
| Application Scope | pharmaceutical, dairy, food, beverage, water processing, wine,
fine chemicals industries etc. |
Remark : All size can be customized
