Description

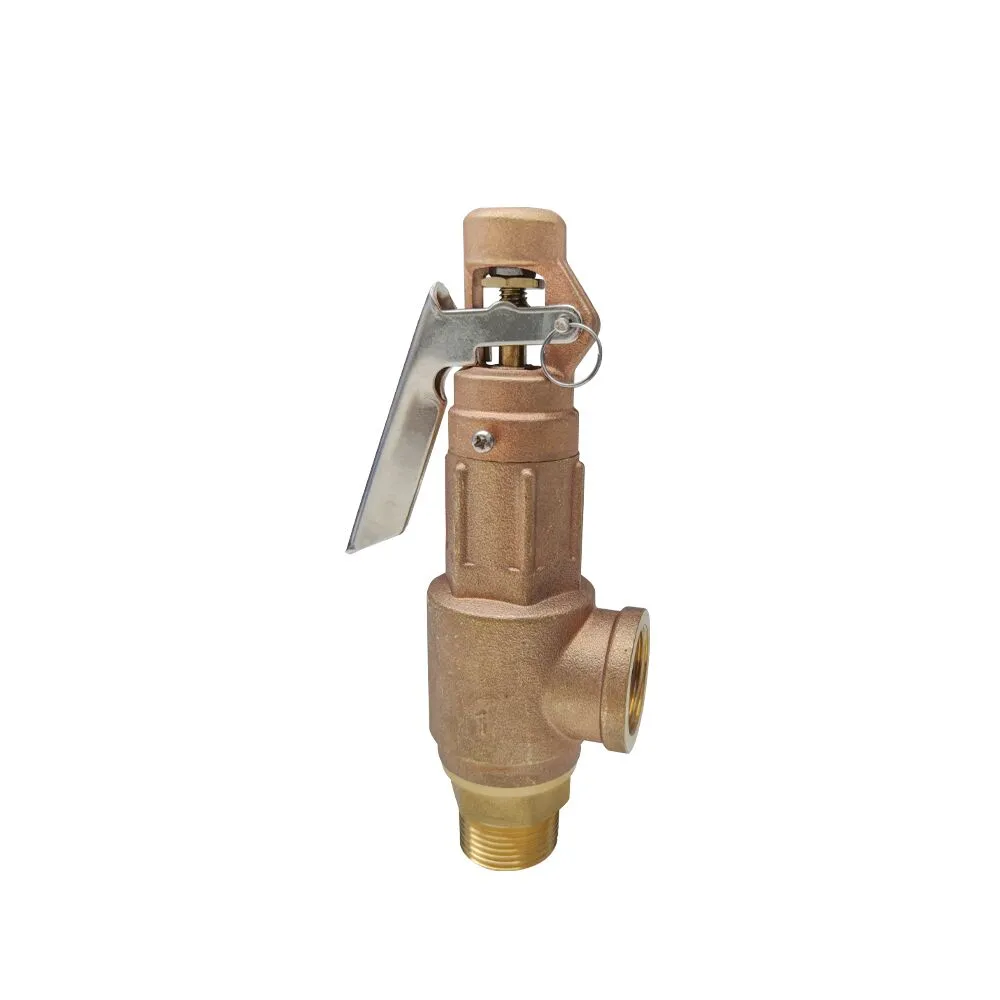

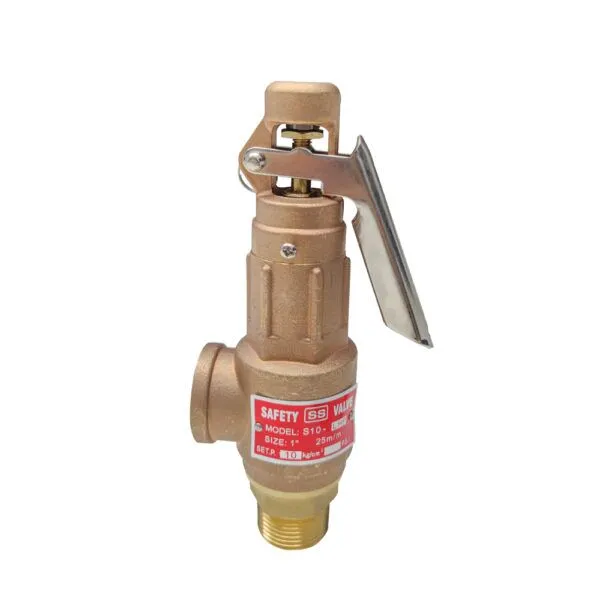

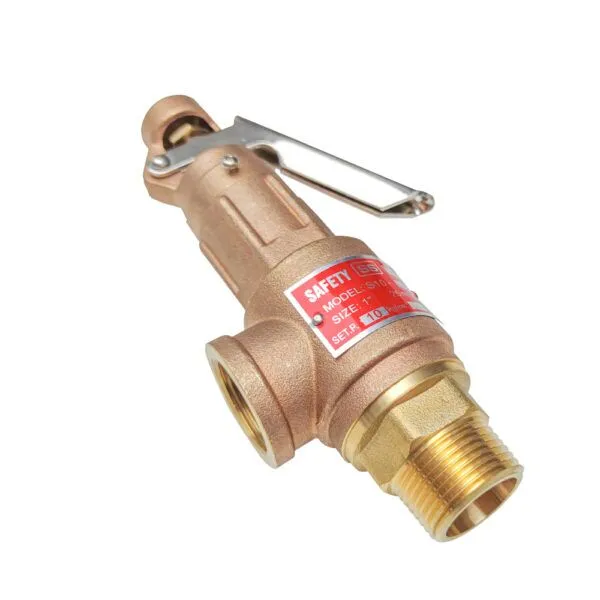

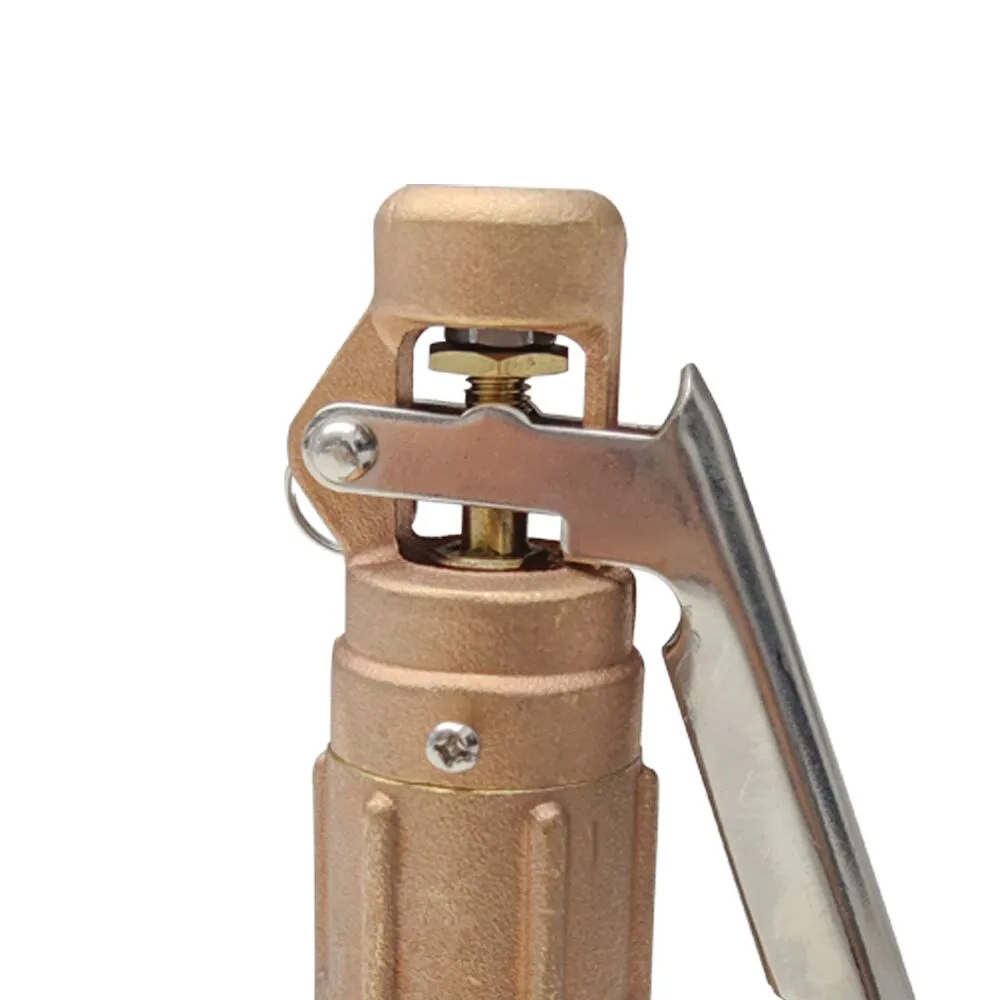

DKV Brass Safety Valve is composed of brass and is renowned for its excellent corrosion resistance and durability. Brass’s sturdiness and reliable sealing make it stand out. Ideal for boilers, pipelines, HVAC. This brass safety valve is the trusted choice to maintain system safety and integrity against pressure threats.

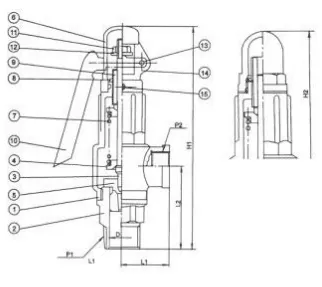

Outline and connecting measurememt
| Size | P1(Inlet) | D (Seat dia) |
P2 Outlet | Lift | L1 | L2 | H1 | H2 |
| 1/2″ | 1/2″ | 13 | 1/2″ | 0.52 | 32 | 52 | 162 | 140 |
| 3/4″ | 3/4″ | 19 | 3/4″ | 0.76 | 36 | 58 | 172 | 150 |
| 1″ | 1″ | 25 | 1″ | 1.00 | 40 | 71 | 204 | 185 |
| 1-1/4″ | 1-1/4″ | 32 | 1-1/4″ | 1.28 | 52 | 83 | 223 | 208 |
| 1-1/2″ | 1-1/2″ | 38 | 1-1/2″ | 1.52 | 58 | 96 | 252 | 236 |
| 2″ | 2″ | 50 | 2″ | 2.00 | 65 | 103 | 287 | 265 |
