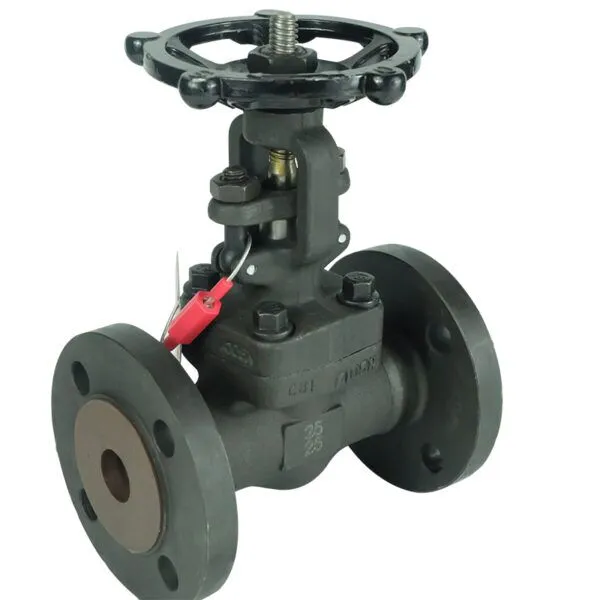

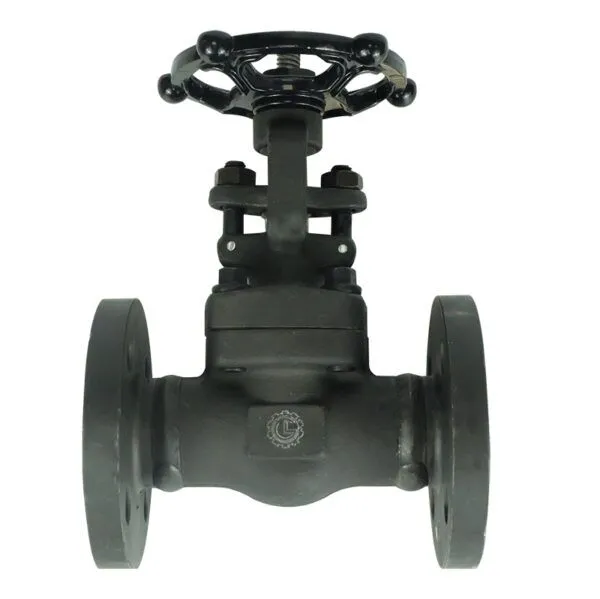

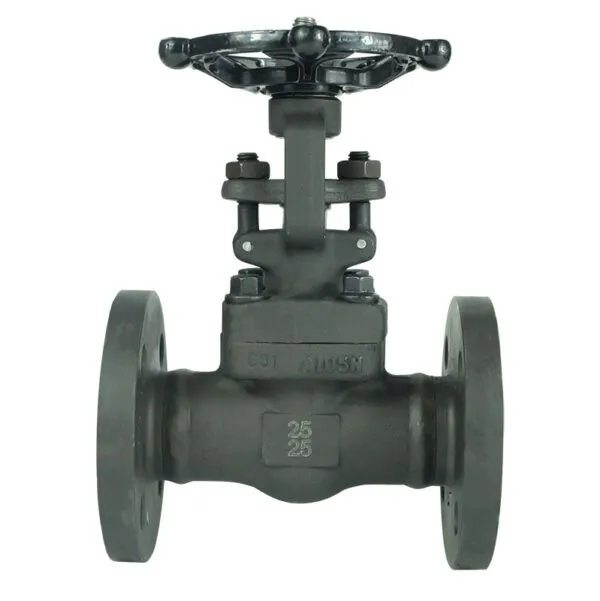

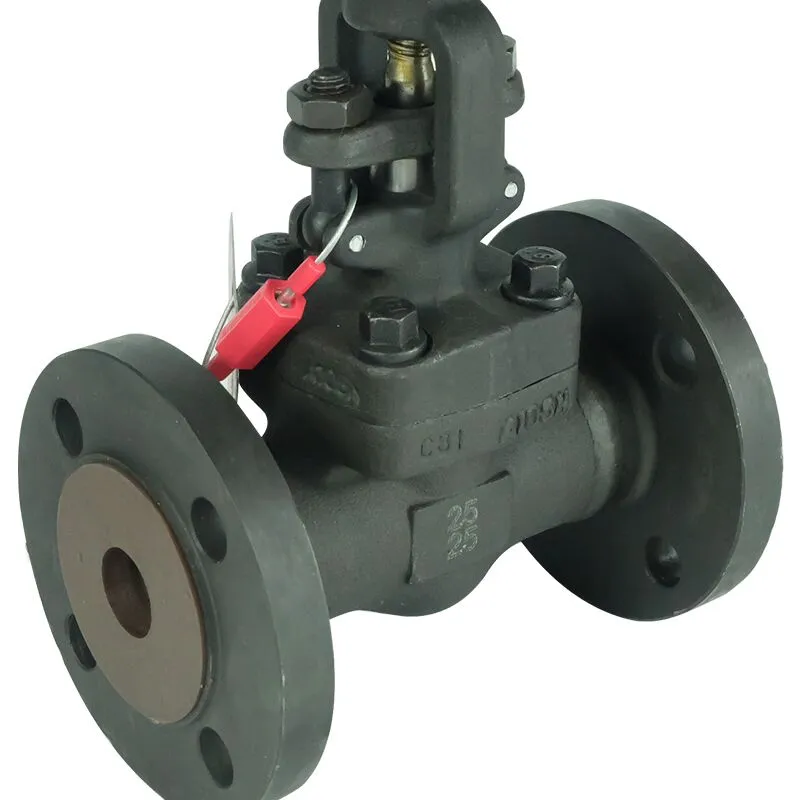

DKV J41 Carbon Steel Forged Flange Gate Valve

DKV J41 Carbon Steel Forged Flange Gate Valve

Customized Support	ODM, OEM
Place of Origin	Guangdong, China
Brand Name	DKV
Product Name	Gate Valves
Model Number	J11
Material	Carbon Steel
Pressure	Normal
Size	DN15-DN400

Danh mục: SPARE PART, STEAM Từ khóa: gate valve, Spare, Steam

Mô tả
Đánh giá (0)

描述

Design and manufacturing	GB/T12224;JB/T7746
Face to face	JB/T96;GB/T12221
Flange end dimension	JB/T82.1~82.4
Structure characteristic	B.B or W.B; OS&Y
Main body material	A105;LF2;F5;F11;F22;F304;F316;F304L;F316L
Valve inspection and testing	GB/T13927:GB/T26480

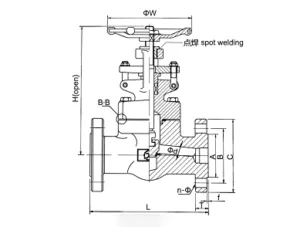

Outline and connecting measurememt

PN16~25 RF
DN	φd		L		H(open)		φW	A	B	C		T		f		n-φ
15	10.5		130		158		100	45	65	95		16		2		4-14
20	13		150		160		100	58	75	105		18		2		4-14
25	17.5		160		198		125	6B	85	115		18		2		4-14
32	24		180		226		160	78	100	140		18		2		4-18
40	29		200		246		160	68	110	150		18		3		4-18
50	36.5		230		290		18D	102	125	165		20		3		4-18
PN40 FM
DN	Φd	L		H(open)		φW	A	B	C	d	f		f2		T	n-Φ
15	10.5	130		158		100	45	65	95	40	2		4		16	4-14
20	13	150		160		100	58	75	105	51	2		4		18	4-14
25	17.5	160		198		125	68	85	115	58	2		4		18	4-14
32	24	180		226		160	78	100	140	86	2		4		18	4-18
40	29	200		246		160	88	110	150	76	3		4		18	4-18
50	36.5	230		290		180	102	125	165	88	3		4		20	4-18

PN63 FM
DN	φd	L	H(open)	φW	A	B	C	d	f	12	T	n-φ
15	10.5	165	170	100	45	75	105	40	2	4	20	4-14
20	13	190	172	100	58	90	130	51	2	4	22	4-18
25	17.5	216	206	125	68	100	140	58	2	4	24	4-18
32	24	230	230	160	78	110	155	68	2	4	26	4-22
40	29	241	262	160	88	125	170	76	3	4	28	4-22
50	36.5	292	295	180	102	135	180	88	3	4	28	4-22
PN100 FM
DN	φd	L	H(open)	φW	A	B	C	d	f	2	T	n-φ
15	10.5	165	170	100	45	75	105	40	2	4	20	4-14
20	13	190	172	100	58	90	130	51	2	4	22	4-18
25	17.5	216	206	125	88	100	140	58	2	4	24	4-18
32	24	230	230	160	78	110	155	66	2	4	26	4-22
40	29	241	262	160	88	125	170	76	3	4	28	4-22
50	36.5	292	295	180	102	145	195	88	3	4	30	4-26

PN160 FM
DN	Φd	L	H(open)	φW	A	B	C	d	f	f2	T	n-Φ
15	10.5	170	172	100	55	75	105	40	2	4	20	4-14
20	13	190	206	125	62	90	130	51	2	4	24	4-18
25	17.5	210	230	160	72	100	140	58	2	4	24	4-18
32	24	230	262	160	85	115	155	66	2	4	28	4-22
40	29	260	295	180	92	125	170	76	3	4	28	4-22
50	36.5	300	345	200	132	165	195	88	3	4	30	4-26
PN250 FM
DN	φd	L	H(open)	φW	A	B	C	d	f	2	T	n-φ
15	10.5	170	172	100	70	90	130	40	2	4	26	4-18
20	13	190	208	125	75	95	135	51	2	4	28	4-18
25	17.5	210	230	160	82	105	150	58	2	4	28	4-22
32	24	230	262	160	96	120	165	66	2	4	32	4-22
40	29	260	295	180	108	135	185	76	3	4	34	4-26
50	36.5	300	345	200	122	150	200	88	3	4	38	8-26
