Working principle

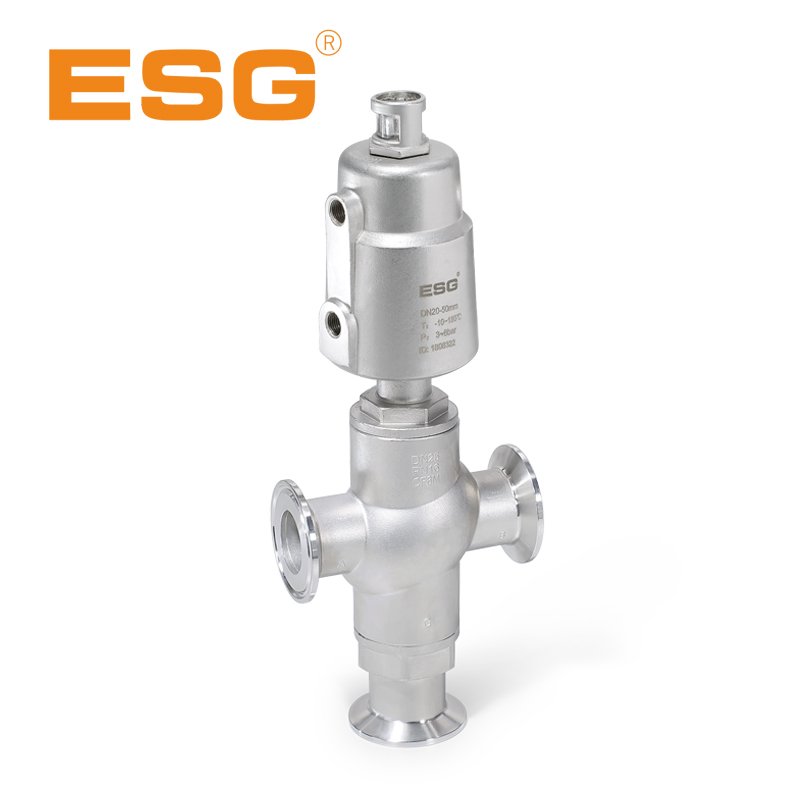

The valve has three through holes, which can realize the commutation split or mixing function, and can replace two two-way stop valves to a certain extent. When the valve is in the non-working state, due to the spring force, the C end of the valve is normally closed, and the B end is normally open; when the actuator piston is acted by the compressed gas, the C end of the valve is opened and the B end is closed. In the double acting mode, the valve is opened and closed by compressed air.
-
Application range
1.Food& Beverage machine (Filling machine for drinks, bear,etc.)2.Disinfection , Hospital Sterilizer3.Water disposal4.CIP
Technical Parameters
Pipeline Pressure: Max16bar (232psi)
Control Pressure: 3-8bar (43.5-116psi)
Control Medium: clean compressed air or neutral gas
Body Material: CF8M
Actuator Material: CF8
Seal Material: PTFE
Medium Temperature: -10 ° C – +180 ° C (PTFE normal temperature type)
Ambient Temperature: -10 ° C – +80 ° C
Control Type: single acting normally closed, double acting normally closed, double acting free state
Connection Type: threaded, quick-loading
Applicable Medium: water, steam, oil, neutral gas or liquid, organic solvent,
Acid-base solution, etc.
Leakage rating: DIN EN 12266 Class A
